NEMO TIG GRAVEL - FRAME-KIT- RIGID - XL

NEMO TIG GRAVEL - FRAME-KIT- RIGID - XL

Reference:11NMG3590990

  • Completely re-designed geometry for more extreme terrains
  • 700 x 47mm \ 650b x 50mm tyre clearance thanks to our proprietary investment cast yoke
  • Designed specifically for Hi-Ride Sterra fork system: 20mm of true hydraulic travel optimized for gravel riding combined with stiffest gravel suspension legs on the market, low maintenance and many other features.
  • As of March 2023 all Nemo frames are manufactured within the Cinelli Milan HQ by our internal framebuilder allowing us to create the world’s shortest supply chain for premium road bikes.
  • Custom-shaped seat stays with oriented elipses and lowered seat tube welding pointing to optimize long-distance comfort
  • Seat collar
  • Custom drawn Columbus Spirit triplebutted tubes
  • Adaptive geometry on rigid fork option thanks to Columbus fork dropouts that allow to change the rake from 47 to 52 mm
  • Design-driven detailing and finish
  • Available in 6 different paint + 1 colour of the year
€3.000,00 €2.400,00 (20%)
/

Choose your color: Gold Pink

Color Frame
Size

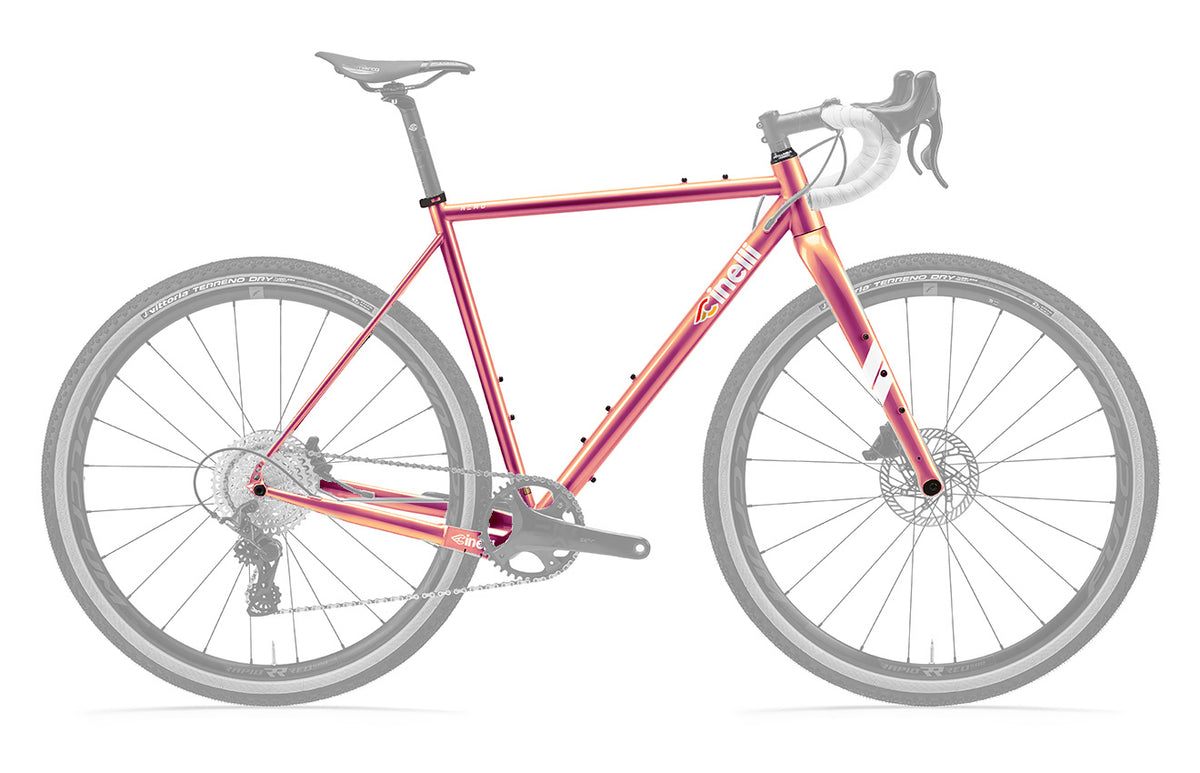

The image has the sole purpose of presenting the product. Some assembly specifications may vary.

Book an appointment
MaterialColumbus Spirit HSS Tubeset
HeadsetIS 42/28,6 | IS 52/40 (rigid fork). IS 42/33 | IS 52/40 (hiride)
Seat ClampCNC Machine ø 29,8
BB ShellT47 68 mm
RoutingExternal / Internal Hydraulic Disc Brake Housing
Tire Clearanceup to 700x47 mm 650b x 50mm
ForkHiride Sterra 1-1/4” - 1-1/2” Columbus 1-1/8” - 1-1/2” Carbon Monoc.
WeightFrame 2000 g. (size M) Columbus Fork 480 g. (uncut) / Sterra 1300g
BrakeFlat Mount Disc Brake, rotor size up to 160mm (rear) - 180mm (front)
Dropouts STRear TA Ø 12x142mm - M12x173 / Front TA Ø 12x100mm - M12x119
What's IncludedFrame / Fork / Ft. Derailleur Clamp / Ft. & Re. Skewers / Headset /
  • Free shipping on eligible orders over €150 / $150 (EU & US - includes apparel, accessories, racewear, and bar tapes).
  • Orders shipped outside the EU: customs duties, import taxes, and tariffs are the customer's responsibility and are payable on delivery.
  • Shipments refused due to unpaid duties: return shipping, carrier clearance fees, and any duties incurred will be deducted from the refund. If these costs equal or exceed the order value, no refund is issued.

Full shipping policy ->

NEMO TIG GRAVEL - FRAME-KIT- RIGID - XL geometry
What is my size?

If you are unsure about your size, please refer to the frame specs on the product page or contact us here. Include your height and inseam measurements, or a biomechanical data sheet. Our customer service team will help you choose the right size.

Can I buy just the frameset?

You can buy the frameset alone for the following models: Tutto Mini, Hobootleg Geo, Hobootleg Easy Travel, Aeroscoop, King Zydeco II, Pressure II, Speciale Gravel, Pressure ADR, Speciale Corsa XCR, Nemo Road, Supercorsa, Supercorsa Pista, Vigorelli.

What bikes are made in Italy?

All Speciale Gravel, Nemo Road, Speciale Corsa XCR, and Supercorsa models are made in Italy. See the bikes here: Made In Italy Bikes – Cinelli Official

Can I change the assembly components?

You can change stem length and handlebar width. For mechanical parts such as cassettes, cranksets, chainrings, or wheels, you may upgrade with third-party components after purchase. Before buying upgrades, we recommend referencing our Cinelli component mapping tool or contacting us for a compatibility check, and having an official dealer handle the assembly.

How can I activate my warranty?

The warranty is automatically activated after payment. Fill out the warranty card included in your bike box and keep your receipt. You can also submit the warranty card and receipt via the Contact Us form, and we will archive them for you.

About this product

Radically overhauled, the Nemo Gravel represents our most intensely hybridized and extreme adventure gravel bike ever, entirely handcrafted by Cinelli’s internal framebuilder in its Milanese HQ using custom drawn triple butted tube drawn by its sister company Columbus, less than 100 metres from the framebuilding workshop. Continuously refined over a one year period of testing by riders including former UCI World Champions, NYC courier legends, professional snowboarders and many other athletes pushing to redefine the limits of what gravel cycling can be, the Nemo Gravel is characterized above all by its completely redesigned geometry, 700 x 47mm tyre clearance and the use of the Hi-Ride Sterra fork with 20mm of true hydraulic travel. Together these features work to create a bike that is ready to tackle the world’s most extreme gravel competitions and adventures.

Reference: 11NMG3590990
