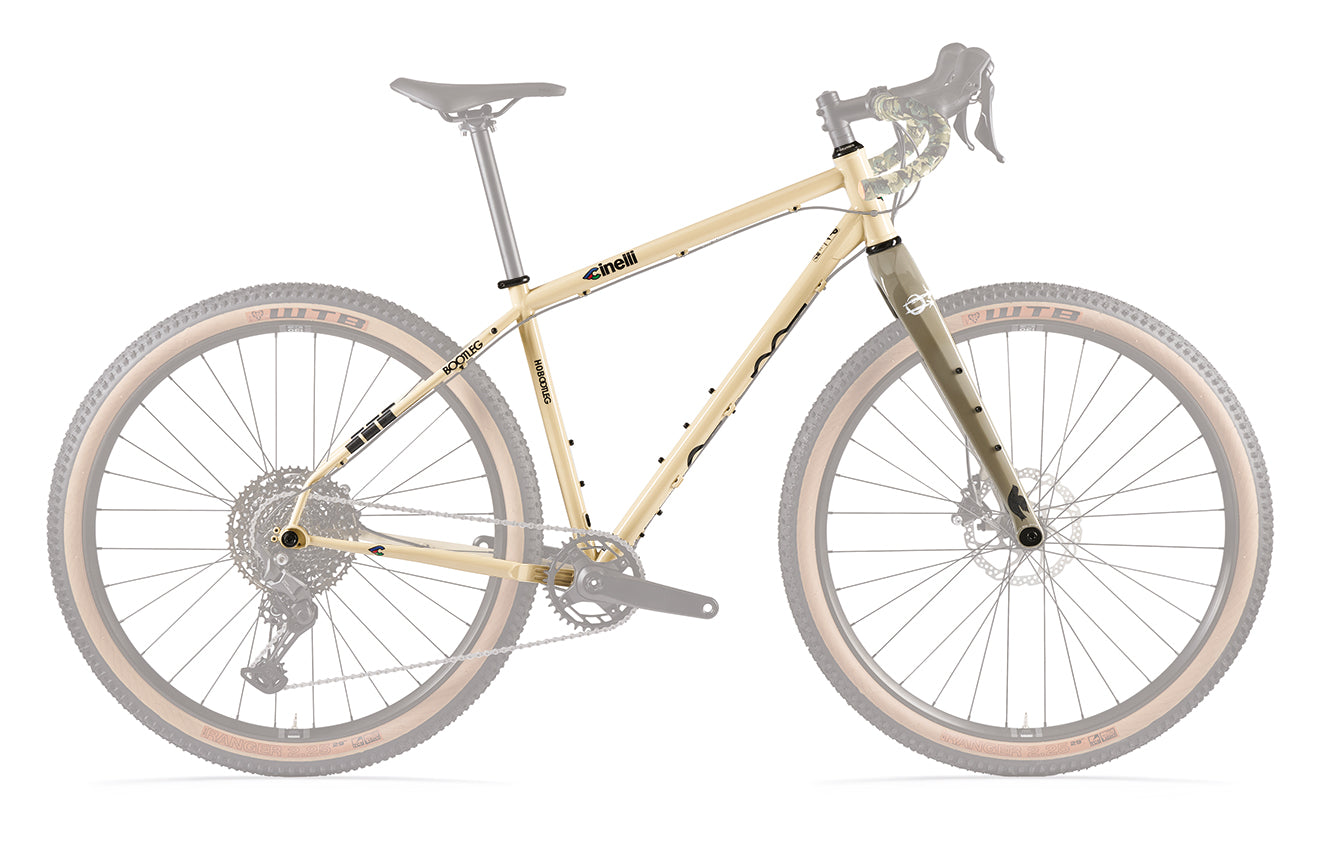

HOBOOTLEG GEO - FRAME KIT
Reference:11HBG5380FDM
- Frame weight: 2500g (size M) + Fork: 550g (uncut) (+/- 5% - painted)
- Adaptive geometry due to Columbus fork dropouts that allow to change the rake from 45 to 50 mm
- Up to 3" tyre clearance (measured)
- Compatible with 29" x 2.4"+ tires
- UDH-compatible rear dropouts
- Multy mounts
- Tough terrains ready
- Frame designed for shorter stems, wide drop bars, and zero-offset seatposts
- Fully bikepacking-ready multiple mounting points
Choose your color: Desert Mud
The image has the sole purpose of presenting the product. Some assembly specifications may vary.

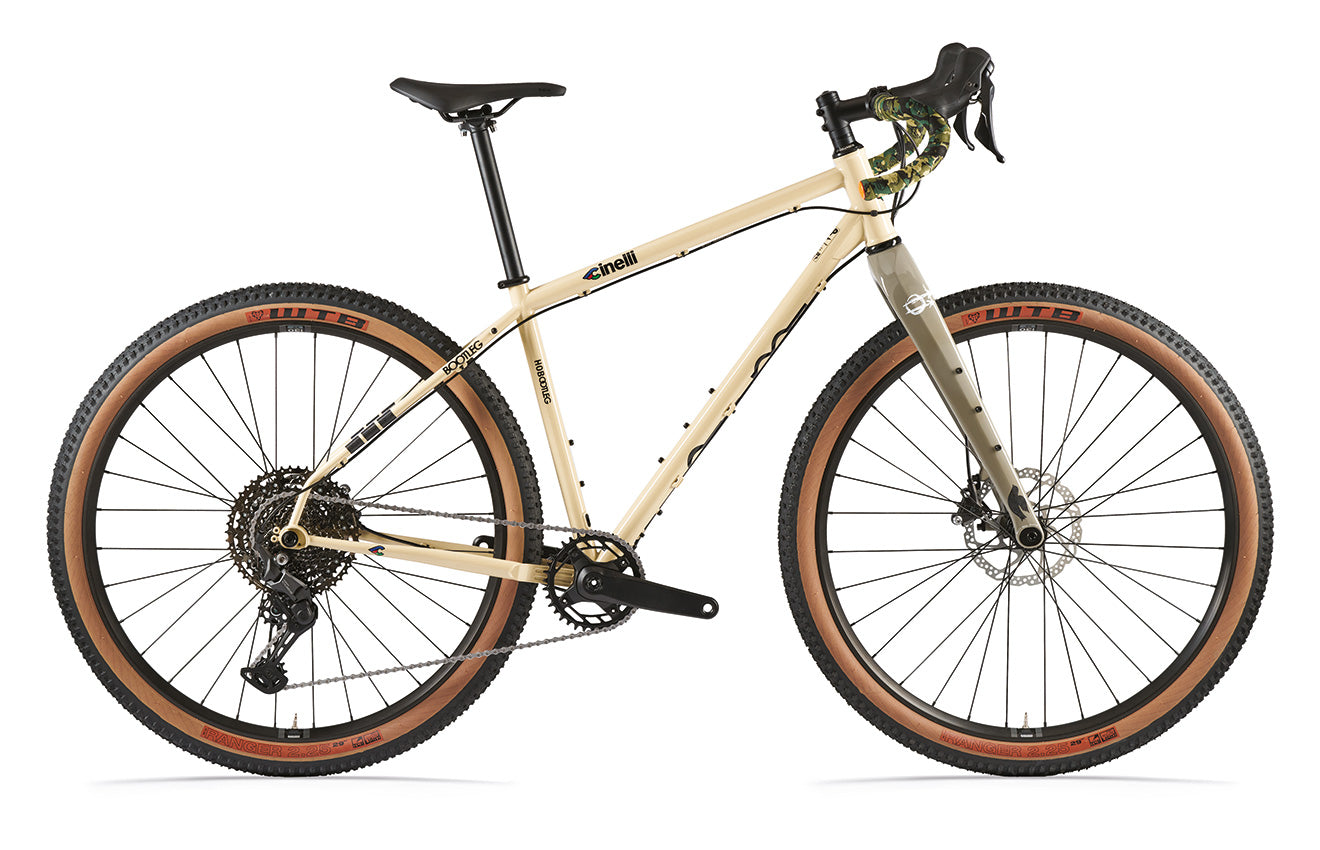

The Hobootleg Geo is Cinelli’s most advanced adventure bike ever. It has been designed to take the signature characteristics of our indestructible self-sufficient world-traveler, the original Hobo model, and tweak it for single-track, in particular technical mountain riding. Key features include flared handlebars, 6-eyelet fork, hydraulic disc brake caliper coupled with a mechanical actuator as well as a geometry that is derived from classic rigid mountain bikes. All details have been finetuned over a three-year testing period with our adventure ambassadors so that the bike is ready to tackle your most extreme rides straight out of the box without further modification.
1. What is my size?: If you are unsure about your size, please check the size chart or contact us through the Contact Us form. Include your height and inseam measurements, or a biomechanical data sheet. Our customer service team will help you choose the right size.
2. Can I buy just the frameset?: YES: Tutto Mini, Hobootleg Geo, Hobootleg Easy Travel, Aeroscoop, King Zydeco II, Pressure II, Speciale Gravel, Pressure, Pressure ADR, all XCR models, all Nemo models, Supercorsa, Supercorsa Pista, Vigorelli.
3. What bikes are made in Italy?: All Speciale Gravel, Nemo, XCR, and Supercorsa models are made in Italy.
4. Can I change the assembly components?: You can change stem length and handlebar width. For mechanical parts such as cassettes, cranksets, chainrings, or wheels, you may upgrade with third-party components after purchase. Before buying upgrades, we recommend contacting us for a compatibility check, and having an official dealer handle the assembly.
5. How can I activate my warranty?: The warranty is automatically activated after payment. Fill out the warranty card included in your bike box and keep your receipt. You can also submit the warranty card and receipt via the Contact Us form, and we will archive them for you.

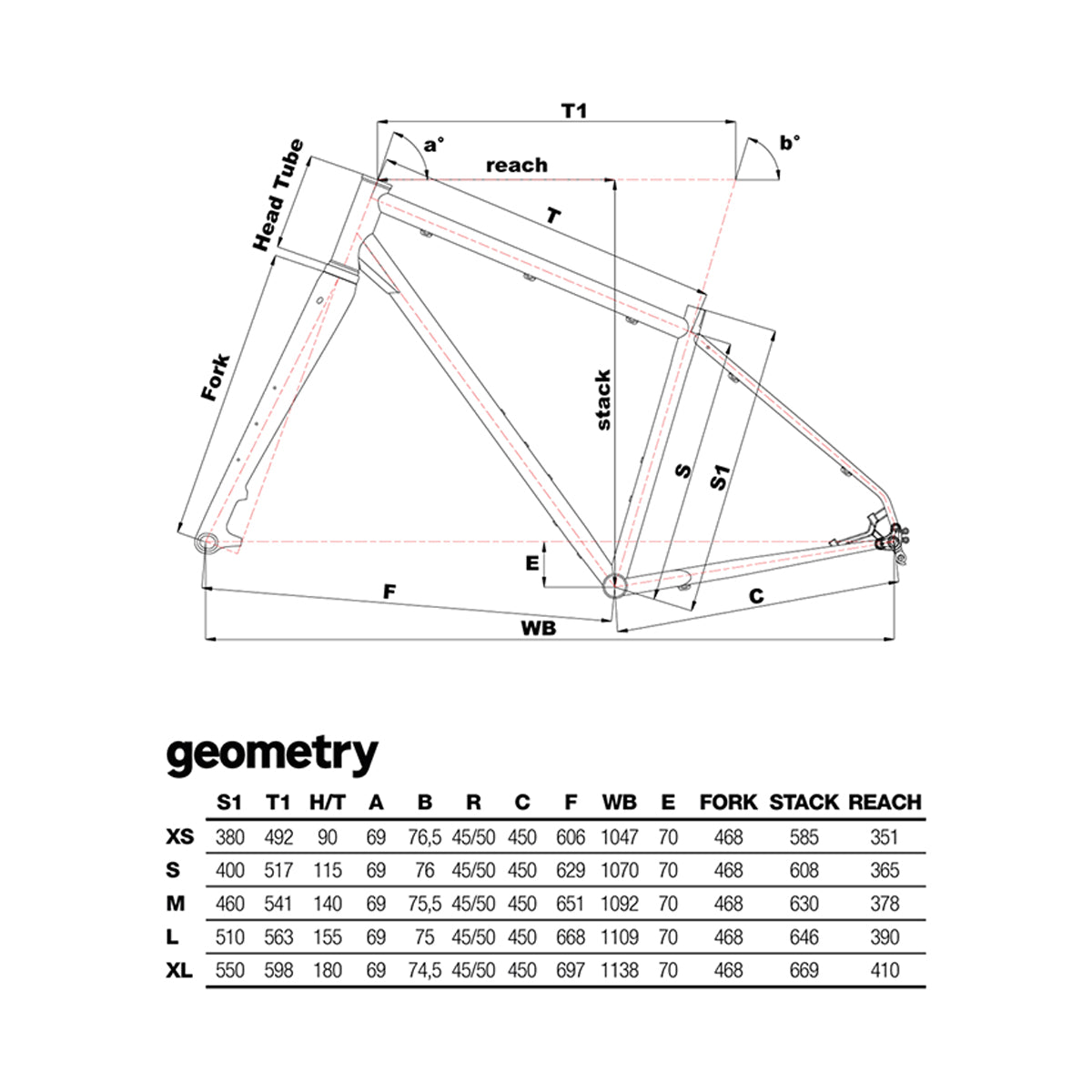

Sizes: XS (38)- S (40) - M (46) - L (51) - XL (55)
Material: Double Butted Steel
Headset: ZS 44/28,6 | EC 44/40 (included)
Seatpost: Ø 27,2 mm
Seat Clamp: Ø 29,8 mm
BB Shell: BSA 73 mm threaded
Ft. derailleur: Clamp on Ø 28,6 mm
Routing: External, Full Lenght Housing, Internal for Dropper Seatpost
Color: Desert Mud
Tyre Clear: Up to 3.0 inches (Measured)
Fork: Columbus Components Futura Adventure 1-1/8 inch - 1-1/2 inch Carbon Monocoque
Weight: Frame 2500 g. (size M) Fork 550 g. (uncut) (+/- 5% - painted)
Brake: Frame Flat Mount, Rotor Size Up to 160mm | Fork Post Mount, Rotor Size Up To 180mm
Dropouts ST: Rear TA Ø 12x148mm - M12x170 / Front TA Ø 15x110mm - M15x150
Highlights: Rear Rack Eyelets / Anything Cage Eyelets / Dynamo Housing / UDH

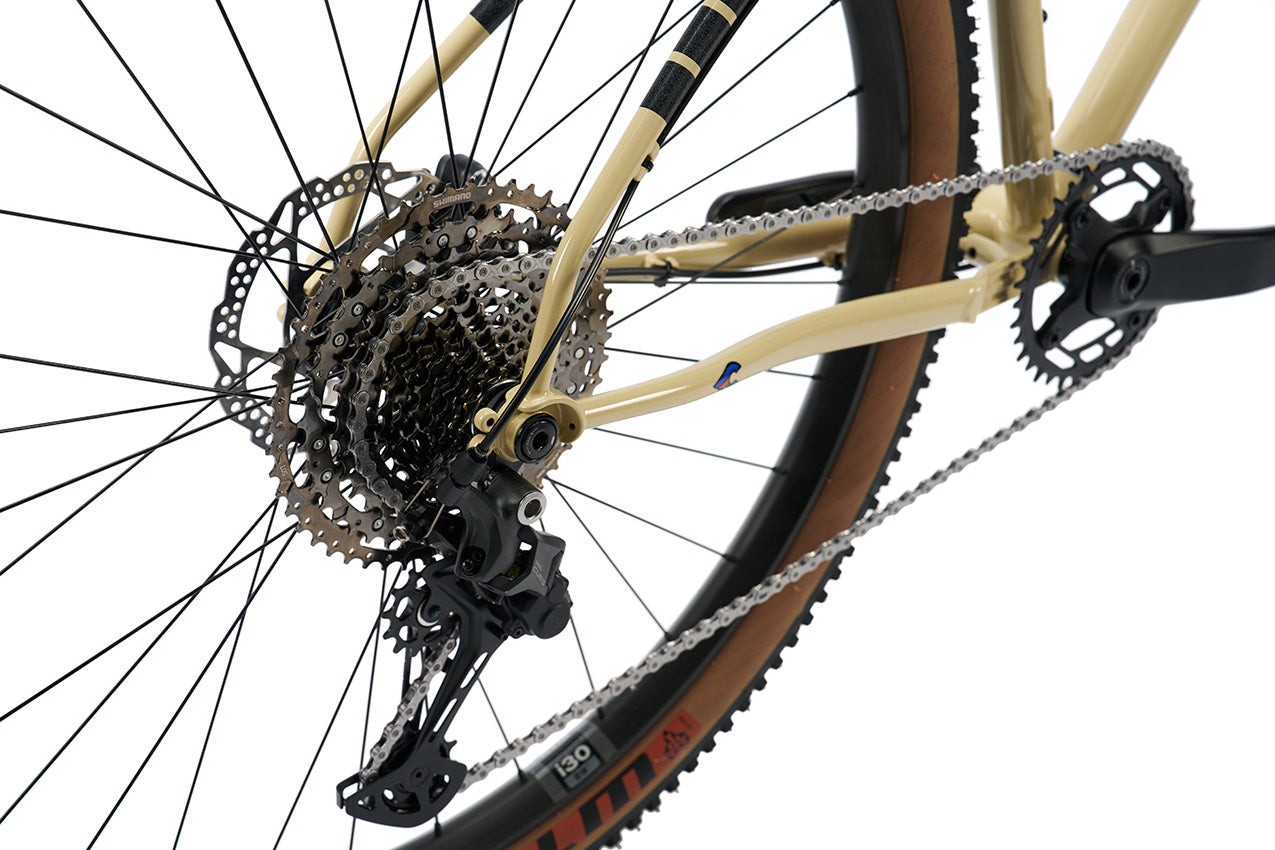

Drivetrain: Shimano Cues 1x10 mix
Handlebar: Cinelli Alu Handlebar 6061
Stem: 3D Forged Alloy
Seatpost: Forged Alloy Ø 27.2
Shifters: Shimano Cues U6030
Brakes: Shimano BR-RS405 Hydr. Brakes
Rotors: Shimano RT-54 180/160mm
Ft. derailleur: /
R. derailleur: Shimano Cues RD-U6000

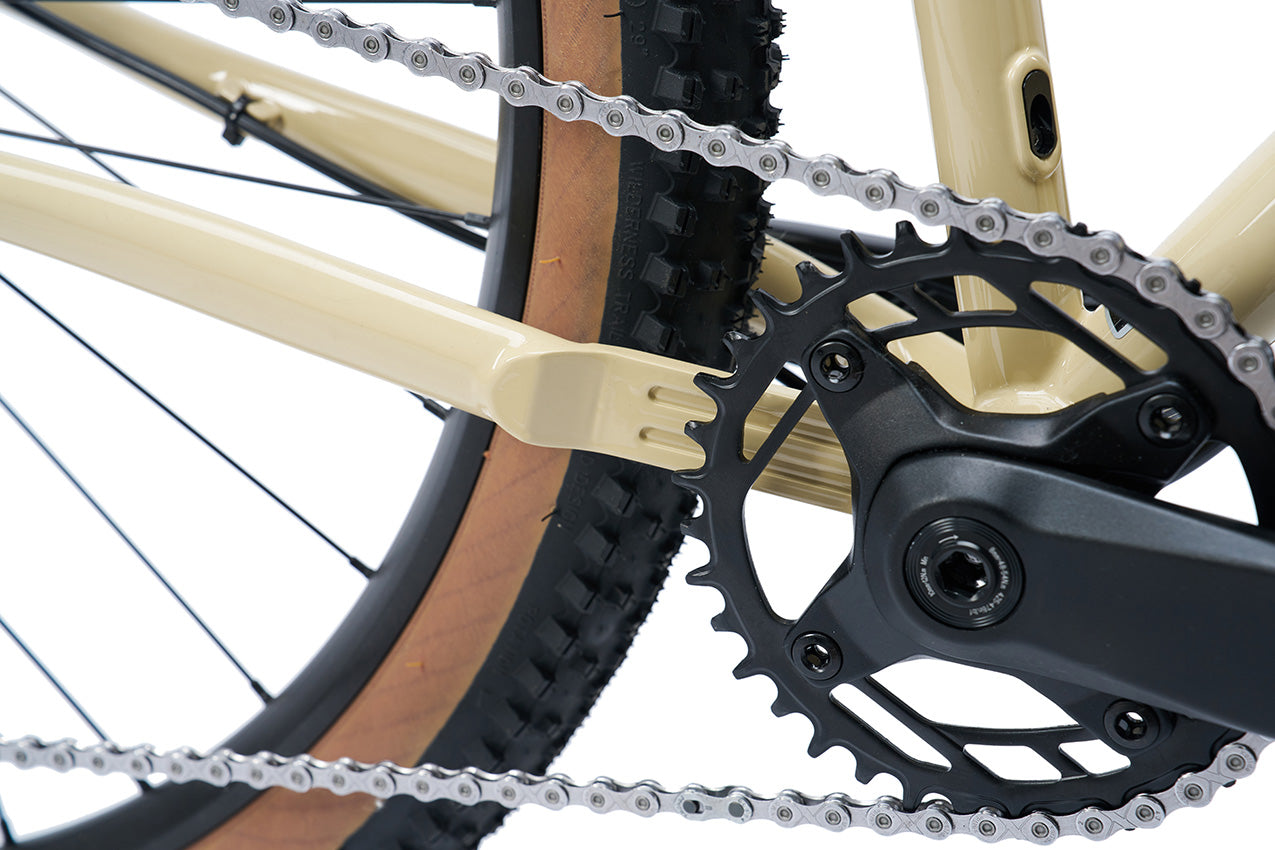

Crankset: Alloy, 36t chainline 52mm
Cassette: Shimano Cues CS-LG400-11 11-50t
Chain: Kmc Xglide EPT
Wheelset: Rims: WTB ST i20 TCS 2.0 29” - Hubs: Shimano TC-500 CL
Tyres: WTB Ranger 29x2.25 TCS
Saddle: Selle Royal SRX
