NEMO TIG ROAD - FRAME-KIT
Reference:11NMD3480EOM
100% MADE IN ITALY FROM ITALIAN MATERIALS
- T47 bottom bracket allows for full internal cable routing (including Columbus Trittico cockpit) as well as improved stiffness
- Ultralight CNC aluminium seatpost collar reduces weight and improves product life
- seatpost tube and diameter reduces weight and improves comfort
- As of March 2023 all Nemo frames are manufactured within the Cinelli Milan HQ by our internal framebuilder allowing us to create the world’s shortest supply chain for premium road bikes.
- Lasercut minimalist brake bridge for further weight savings

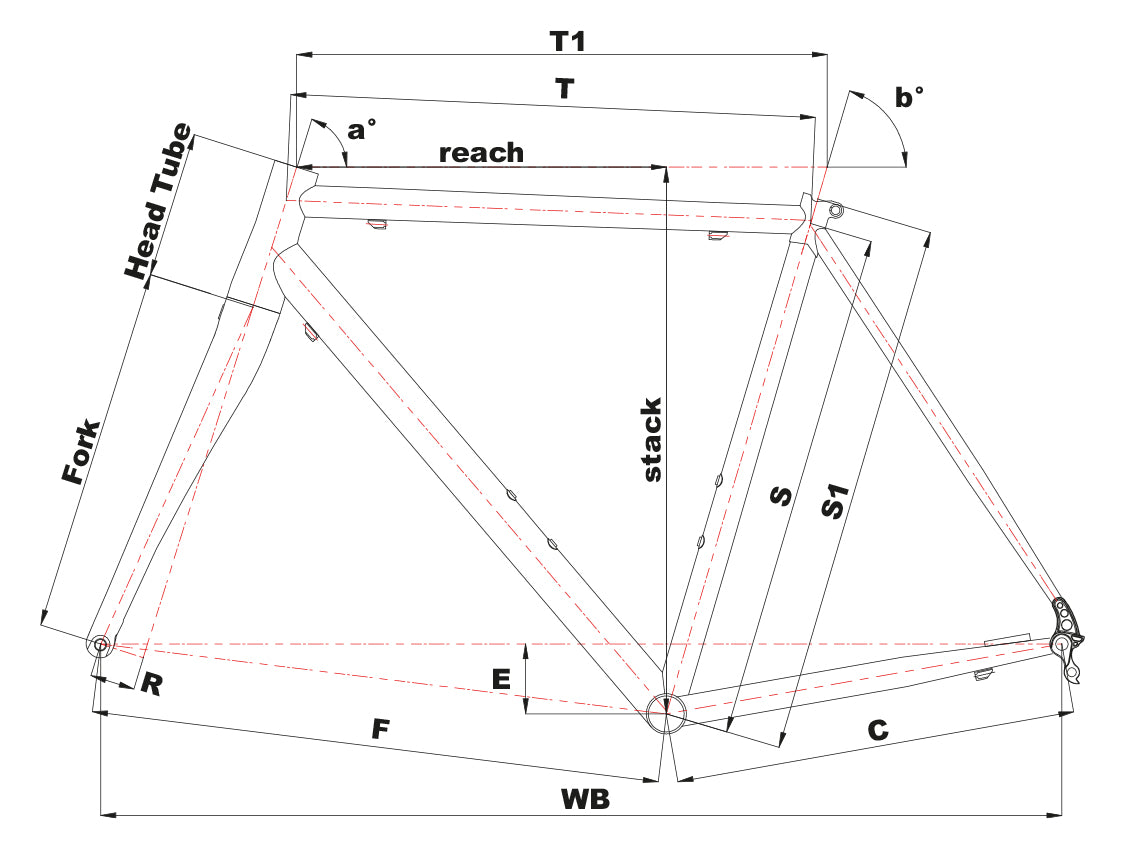

- Geometry
- Custom drawn Columbus Spirit triplebutted tubes
- Increased tyre clearance 32mm
- Classic Italian racing geometry
- Design-driven detailing and finish
- Compatible Only With Electronic Groupsets
- Available in 6 different paint + 1 Colour of the Year
Choose your color: Oat Milk
The image has the sole purpose of presenting the product. Some assembly specifications may vary.
The Nemo is Cinelli’s flagship steel road bike, handcraft to hybridize our more than 75 years of Italian cycling heritage with the performance possibilities of contemporary cold-drawn steel tubing technology. Every Nemo frame is handwelded by Cinelli’s internal framebuilder in its Milanese HQ, using custom drawn triple butted tube drawn by its sister company Columbus, less than 100 metres from the framebuilder creating the world’s shortest performance bicycle supply chain. For 2024 – thanks to continuous three-way dialogue between the Cinelli design office, our framebuilder and Columbus – the Nemo has undergone subtle but significant manufacturing improvements including a 170g weight reduction (size Medium), the introduction of the T47 bottom bracket allowing for fully-internal cable routing as well as improving stiffness and a new ultralight CNC’d aluminium seatpost collar.
1. What is my size?: If you are unsure about your size, please check the size chart or contact us through the Contact Us form. Include your height and inseam measurements, or a biomechanical data sheet. Our customer service team will help you choose the right size.
2. Can I buy just the frameset?: YES: Tutto Mini, Hobootleg Geo, Hobootleg Easy Travel, Aeroscoop, King Zydeco II, Pressure II, Speciale Gravel, Pressure, Pressure ADR, all XCR models, all Nemo models, Supercorsa, Supercorsa Pista, Vigorelli.
3. What bikes are made in Italy?: All Speciale Gravel, Nemo, XCR, and Supercorsa models are made in Italy.
4. Can I change the assembly components?: You can change stem length and handlebar width. For mechanical parts such as cassettes, cranksets, chainrings, or wheels, you may upgrade with third-party components after purchase. Before buying upgrades, we recommend contacting us for a compatibility check, and having an official dealer handle the assembly.
5. How can I activate my warranty?: The warranty is automatically activated after payment. Fill out the warranty card included in your bike box and keep your receipt. You can also submit the warranty card and receipt via the Contact Us form, and we will archive them for you.
Sizes: XS (48) - S (51) - M (54) - L (56) - XL (59) - XXL (61) / Made to Measure
Material: Columbus Spirit HSS Tubeset
Headset: IS 42/28,6 | IS 52/40
Seatpost: Ø 27,2 mm
Seat Clamp: CNC Machined ø 29,8
BB Shell: T47 68 mm
Ft. derailleur: Clamp Ø 28,6 mm
Routing: Full Internal (Super Record,Red, Dura-Ace) - External / Internal Hydraulic Disc Brake Housing
Color: Colour of the Year (+6 Custom colors)
Tyre Clear: up to 700x32 mm
Fork: Columbus Trittico Carbon Road
Weight: Frame 2000 g. (size M) Fork 392 g. (uncut)
Brake: Flat Mount Disc Brake, rotor size up to 160 mm
Dropouts ST: Rear TA Ø 12x142mm - M12x173 / Front TA Ø 12x100mm - M12x119
Highlights: Frame / Fork / Ft. Derailleur Clamp / Ft. & Re. Skewers / Headset
