Columbus
MPa tensile strength
3d Printed junctions
-

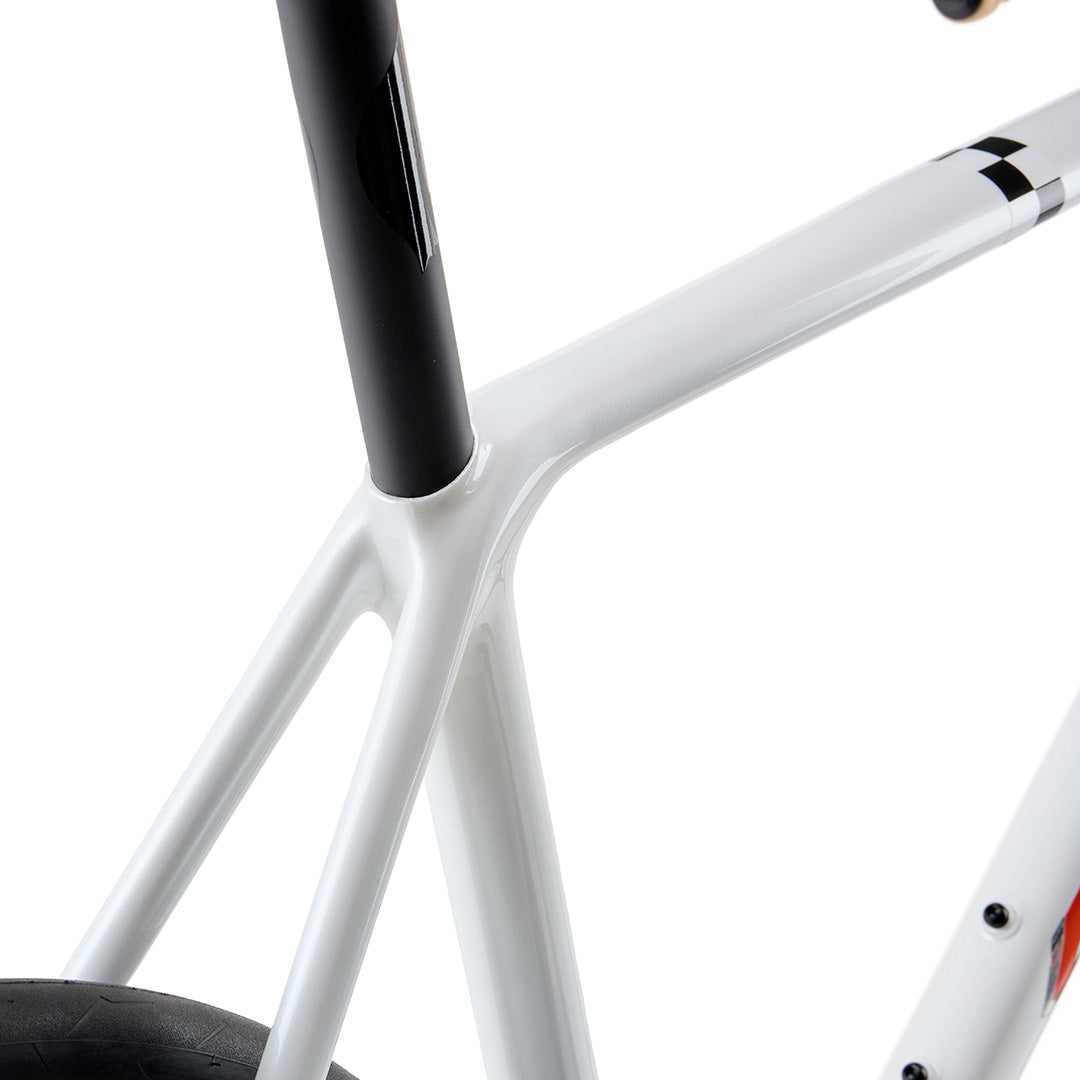

Top tube, seat tube and seat stays meet in one printed piece. The seat clamp expander is built into it, so nothing sits on the outside.
-

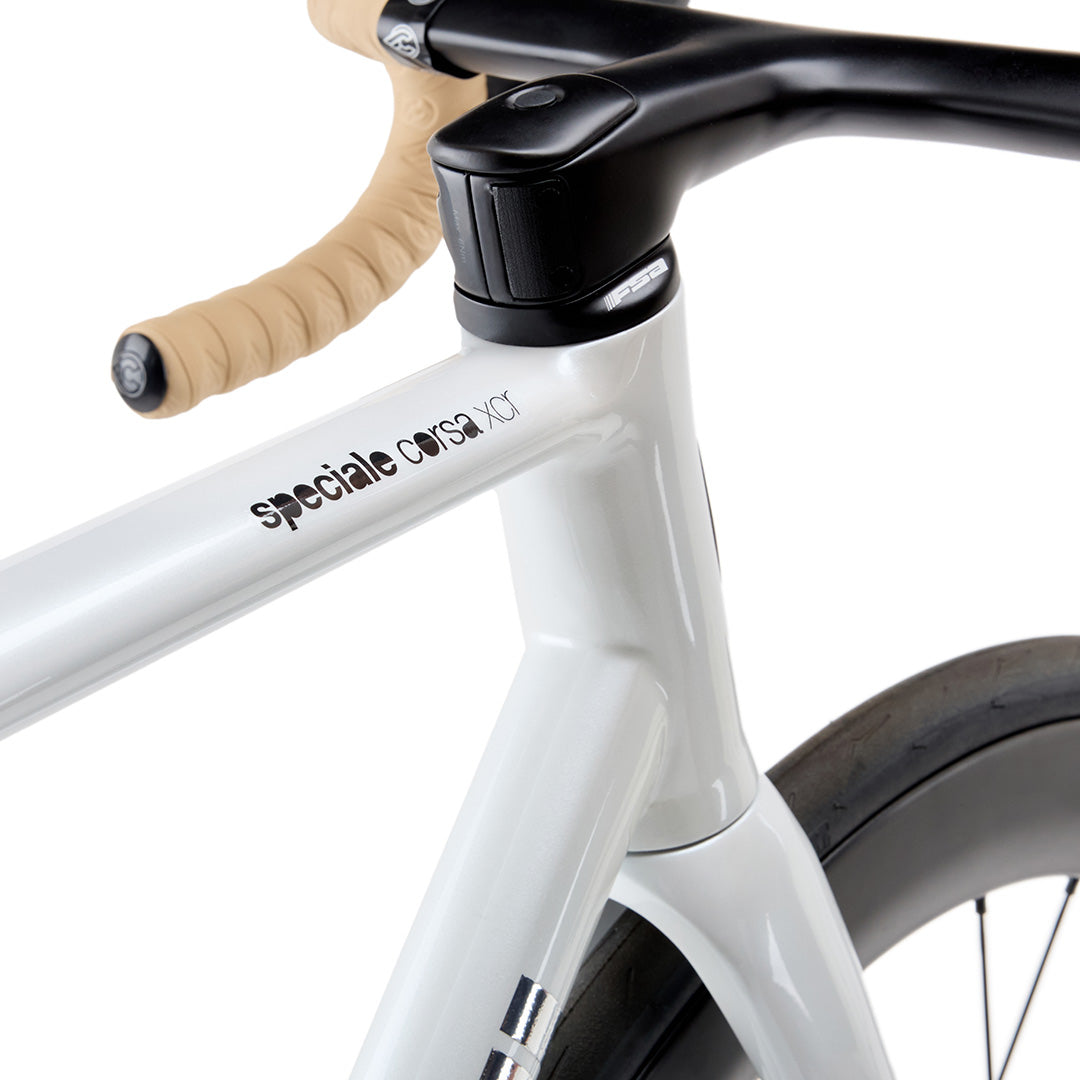

Head tube and top tube joined in a single form, with the cable passages already inside it.
Frame weight · size M
1990g
Fork weight · painted, uncut
392g
RUST. EVER.
0
THE BUILDS
- Drivetrain
- —
- Gears
- —
- Gear Type
- —
- Power Meter
- —
- Wheelset
- —
- Tires
- —
- Saddle
- —
- Handlebar
- Columbus Spirit integrated carbon handlebar

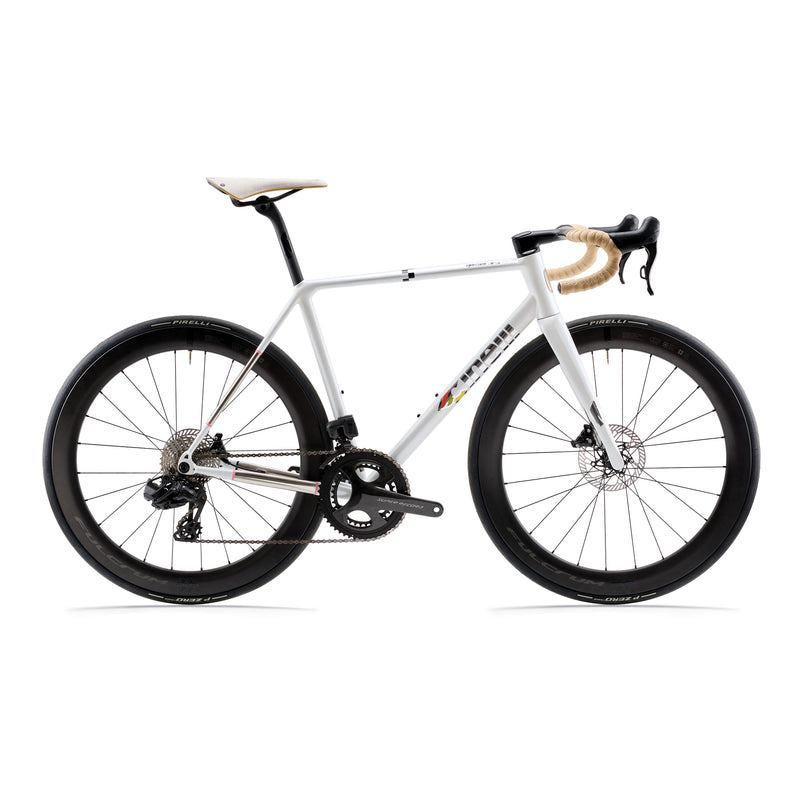

- Drivetrain
- Campagnolo Super Record WRL
- Gears
- 2x13
- Gear Type
- Electronic
- Power Meter
- —
- Wheelset
- Columbus Cento50C
- Tires
- Vittoria Corsa Pro 700x30
- Saddle
- Fi'zik Antares R7
- Handlebar
- Columbus Spirit integrated carbon handlebar
- Drivetrain
- Shimano Dura-Ace 9270
- Gears
- 2x12
- Gear Type
- Electronic
- Power Meter
- Sram Red Power Meter
- Wheelset
- Columbus Cento50C
- Tires
- Vittoria Corsa Pro 700x30
- Saddle
- Fi'zik Antares R7
- Handlebar
- Columbus Spirit integrated carbon handlebar
- Drivetrain
- Shimano Dura-Ace 9270
- Gears
- 2x12
- Gear Type
- Electronic
- Power Meter
- 4iiii Precision 3+ Pro
- Wheelset
- Columbus Cento50C
- Tires
- Vittoria Corsa Pro 700x30
- Saddle
- Fi'zik Antares R7
- Handlebar
- Columbus Spirit integrated carbon handlebar
Key Features
01

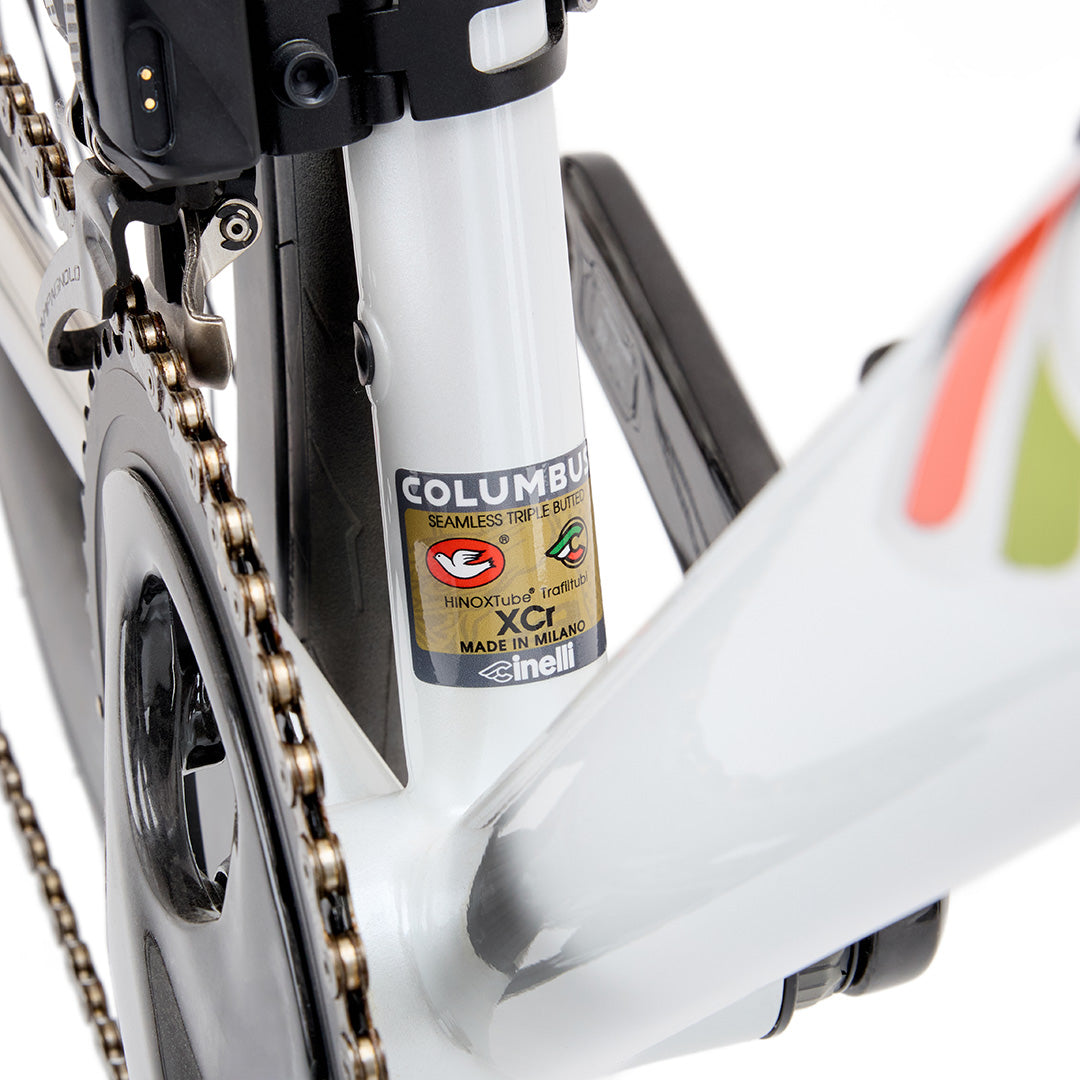

Columbus XCR tubeset
Biphasic, seamless stainless steel: the only tubing of its kind engineered for elite road cycling. Cold-drawn and triple-butted by Columbus.
02
3D printed components
Precision-built with 3D printed components. [Which parts: dropouts, BB shell, head tube? To confirm.]
03

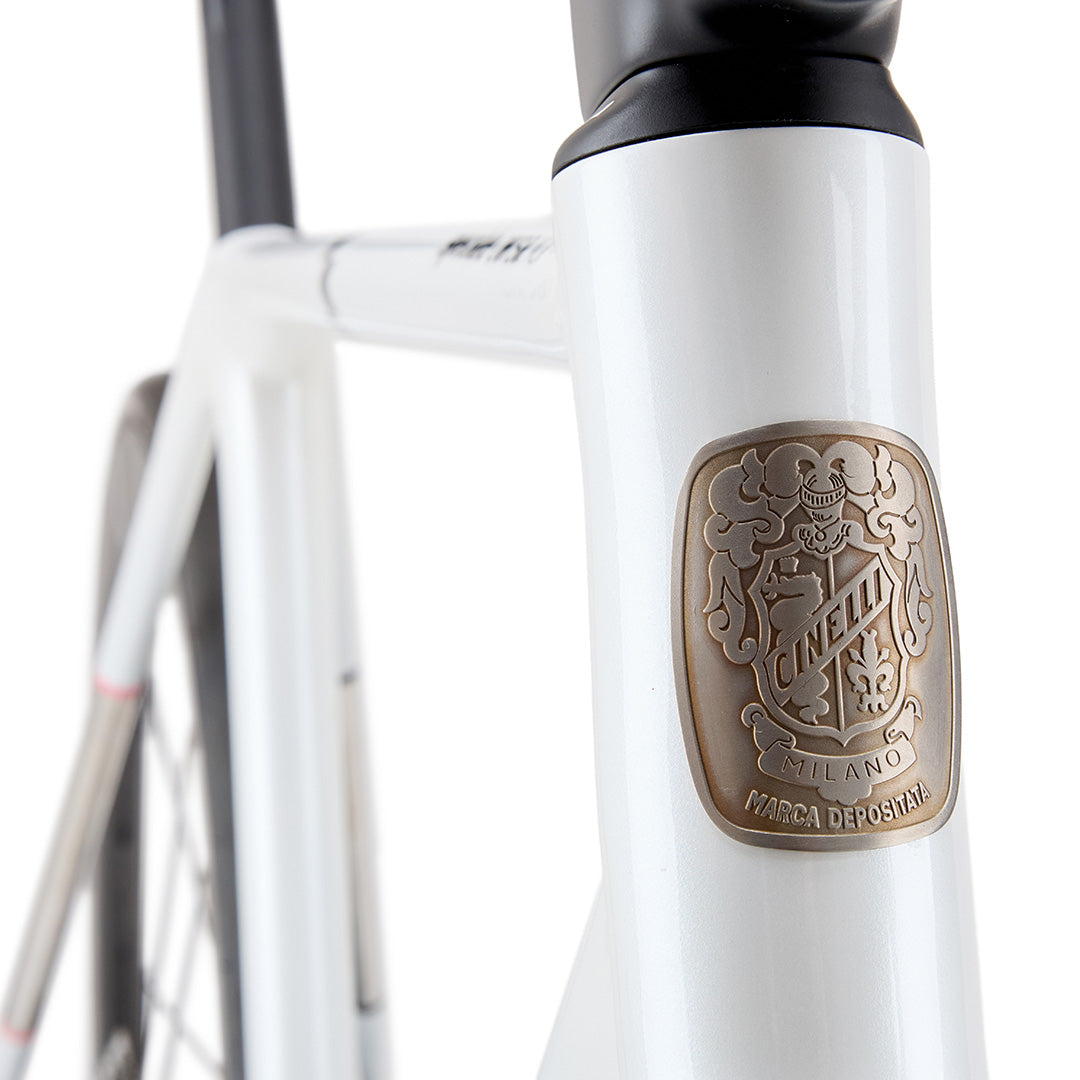

Titanium head badge
A small detail you notice every time you lift the bike off the wall.

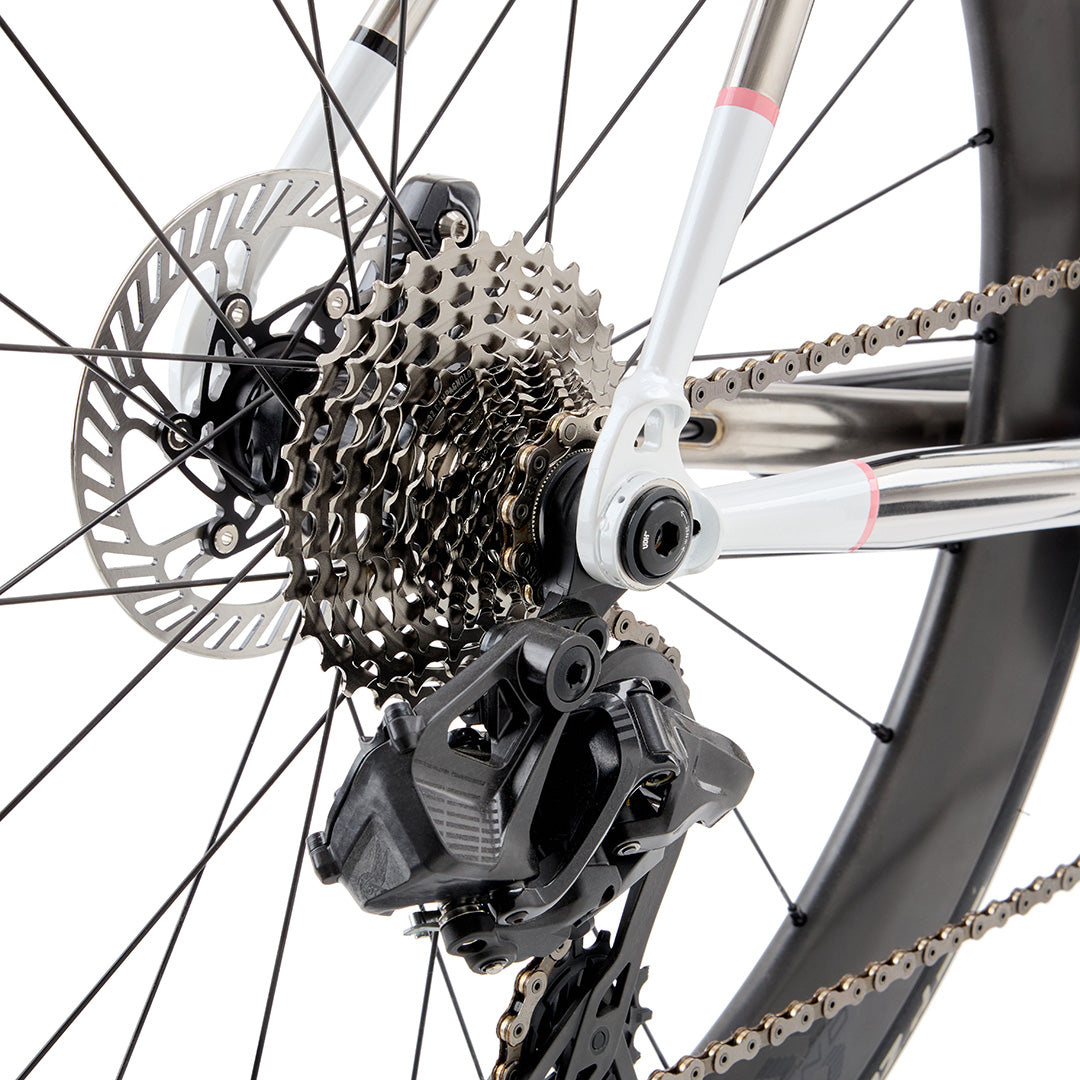

UDH rear dropouts
Universal Derailleur Hanger standard on a 12x142 mm thru-axle rear end. Front and rear skewers included.
Category
Full integration

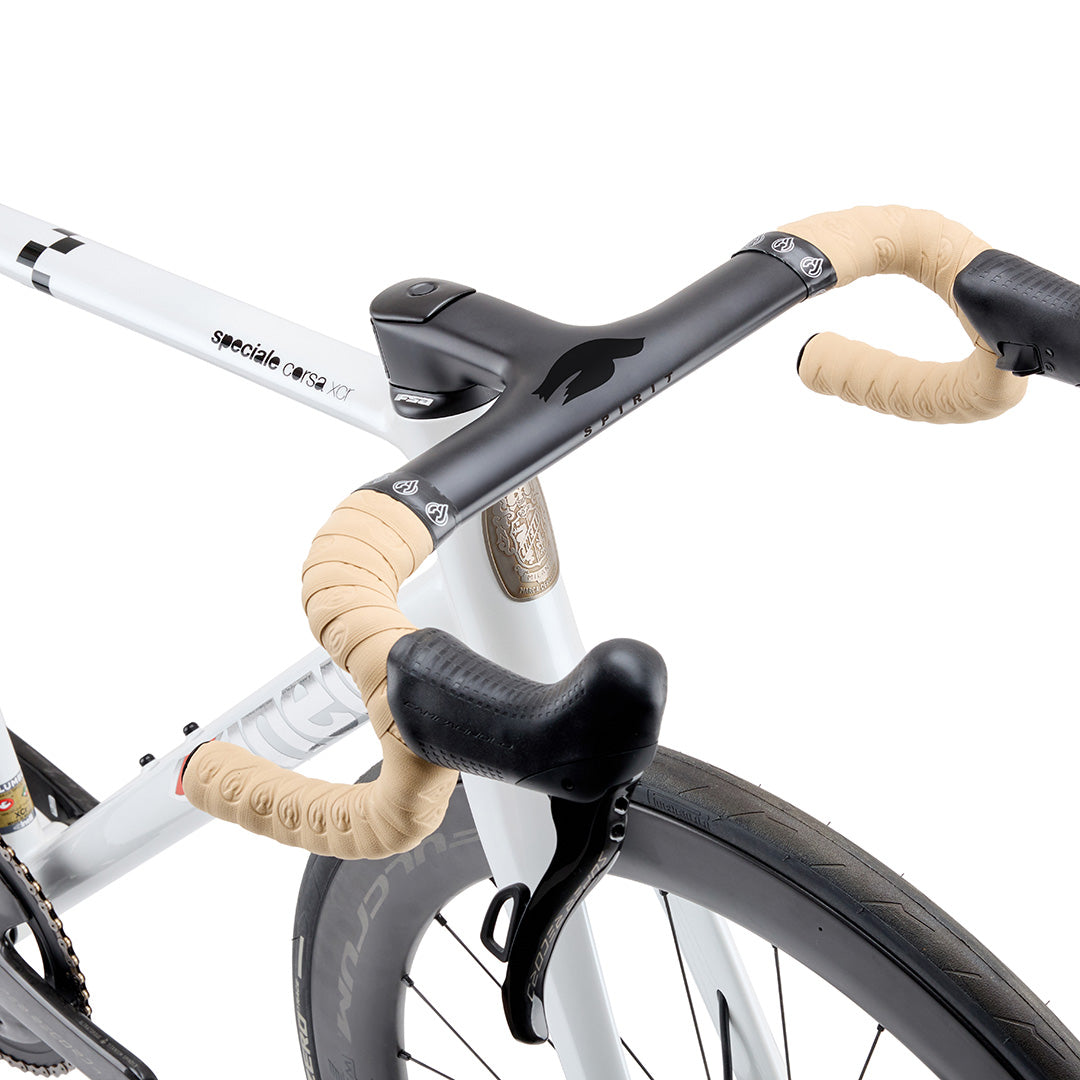

Fully internal routing, a hidden seat clamp and the Columbus Components Spirit integrated handlebar. Built for electronic groupsets only.
Corrosion-proof
Stainless steel doesn’t rust. Rain, road salt and sweat included. Tyres up to 32 mm for rougher tarmac and long days.
Built at our HQ
Every Speciale frame is made in our Milano headquarters by our in-house framebuilder. Columbus draws the tubes less than 100 metres away.

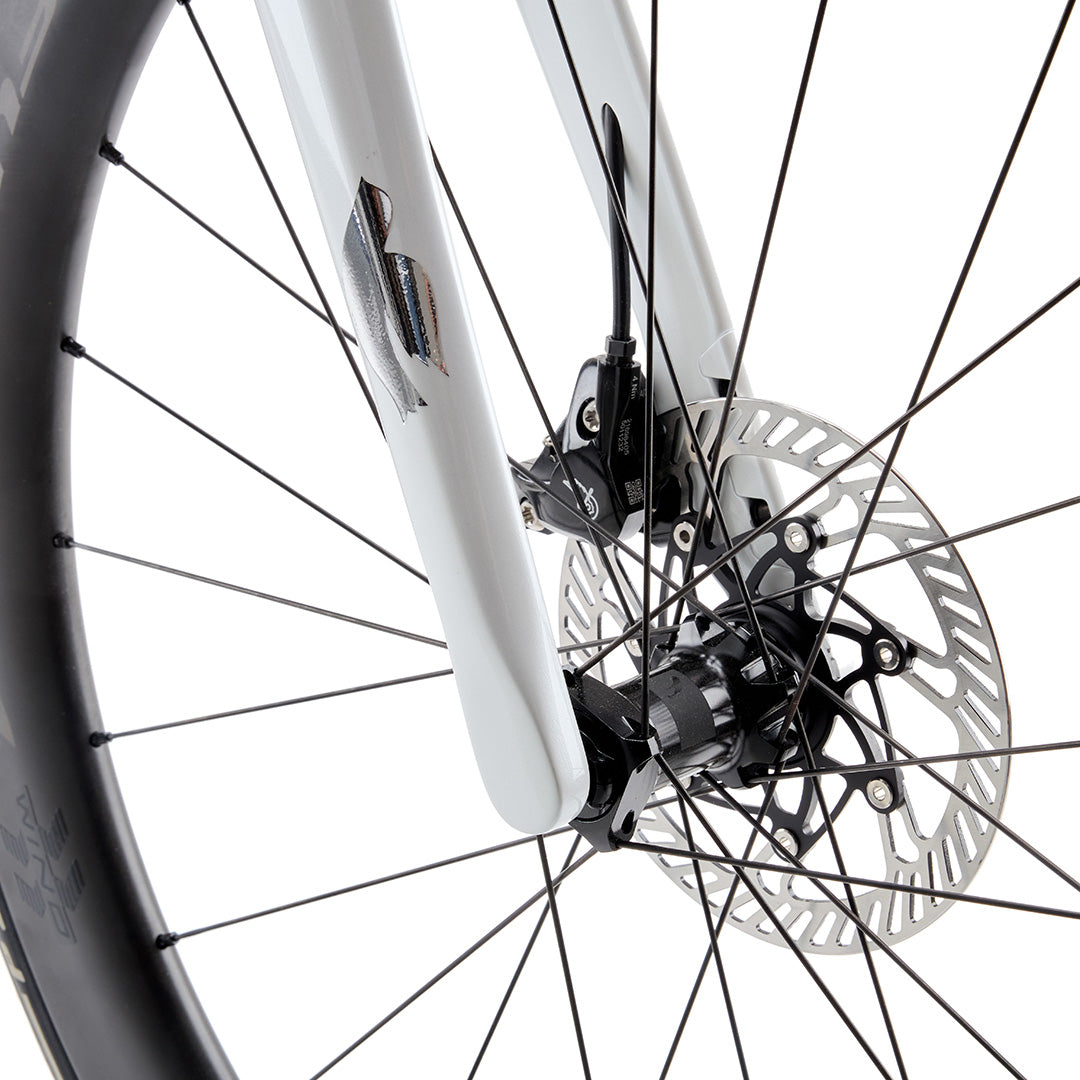

Trittico Carbon Road fork
Tyre Clearance 32mm
-
Hidden seat clampIncluded. CC Trittico Carbon seatpost, ø 27.2 mm.
-
UDH dropouts12x142 mm rear thru-axle.
-
Feature three
-
1
Hidden seat clampIncluded. CC Trittico Carbon seatpost, ø 27.2 mm.
-
2
UDH dropouts12x142 mm rear thru-axle.
-
3
Feature three
